Description

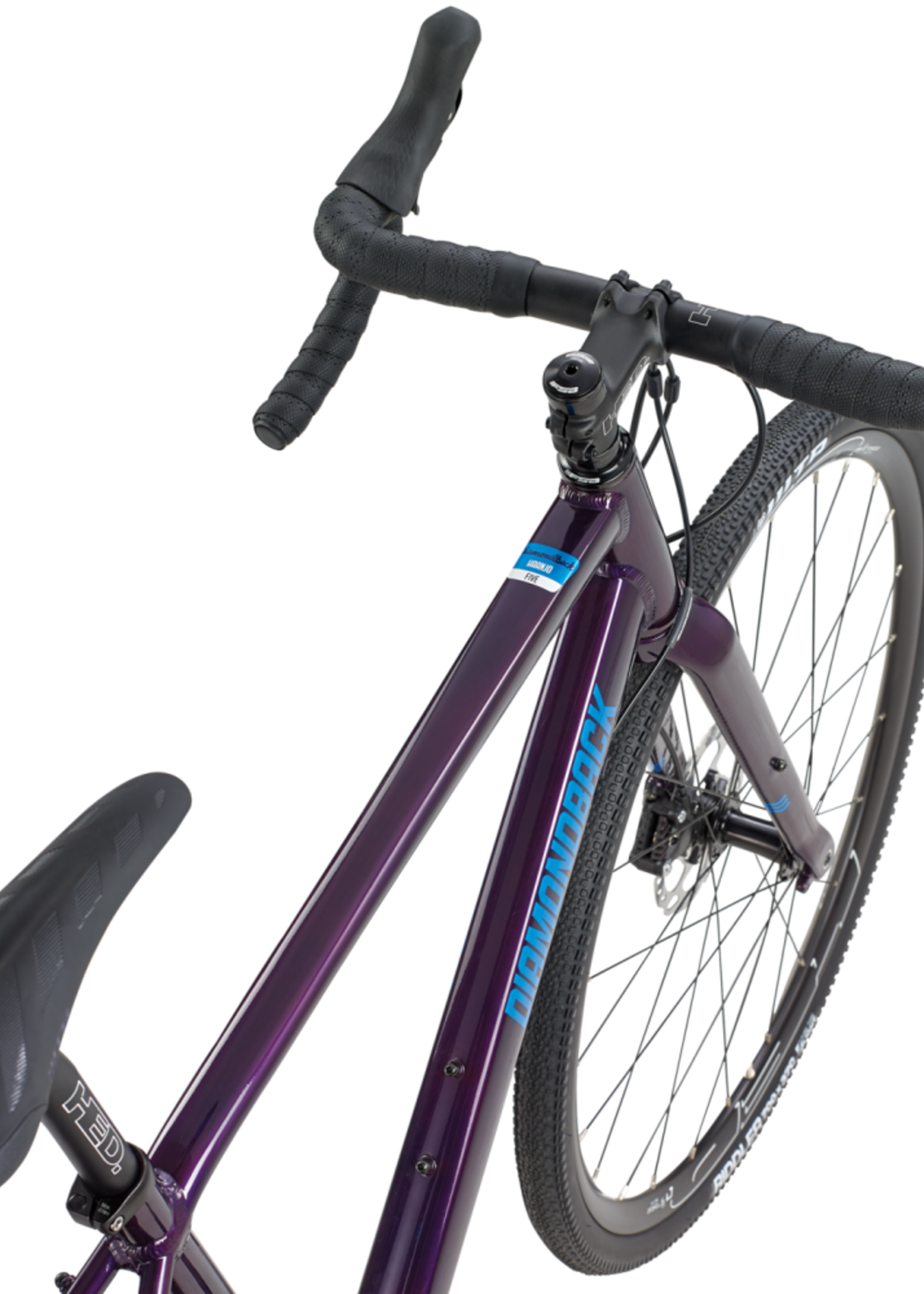

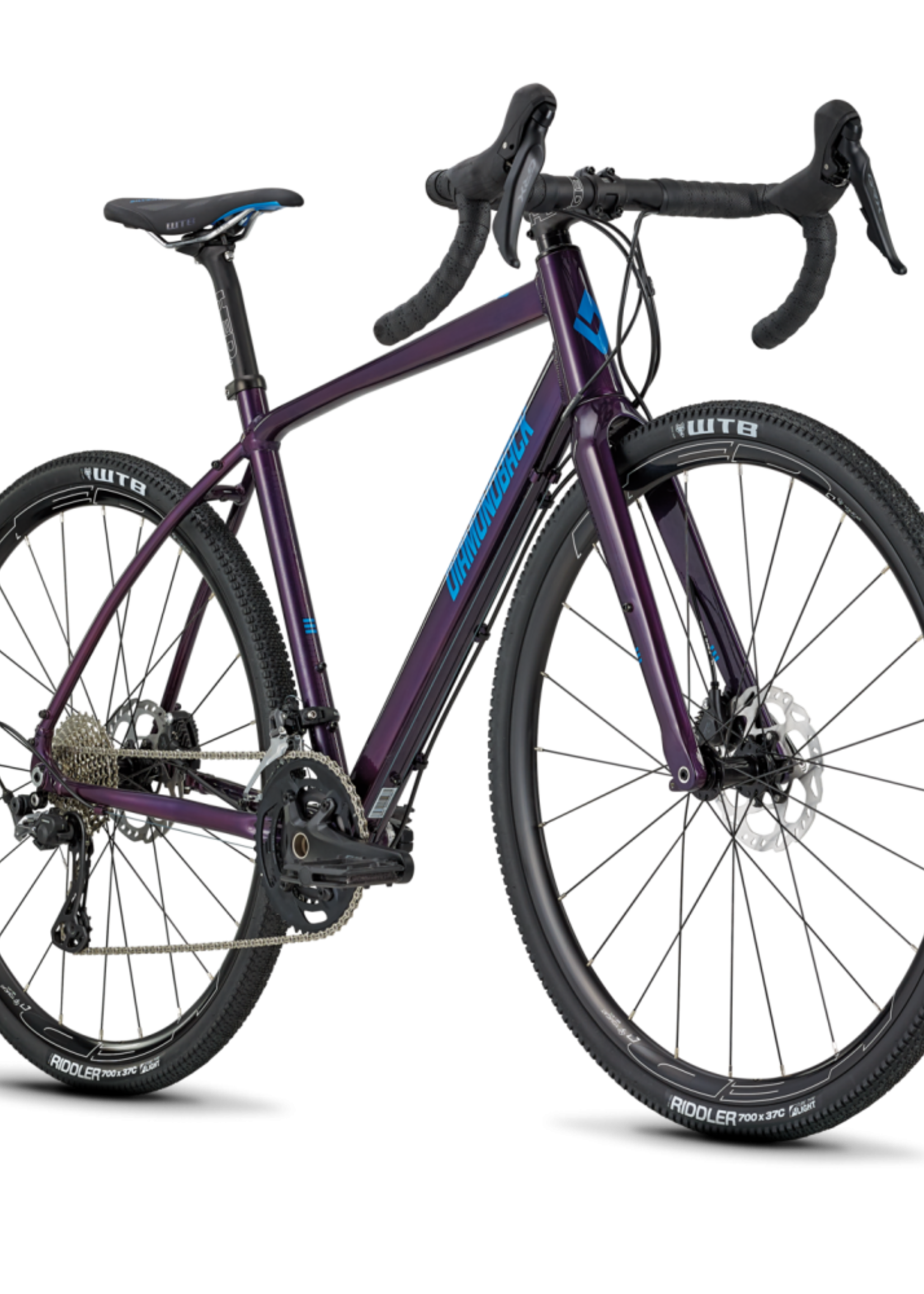

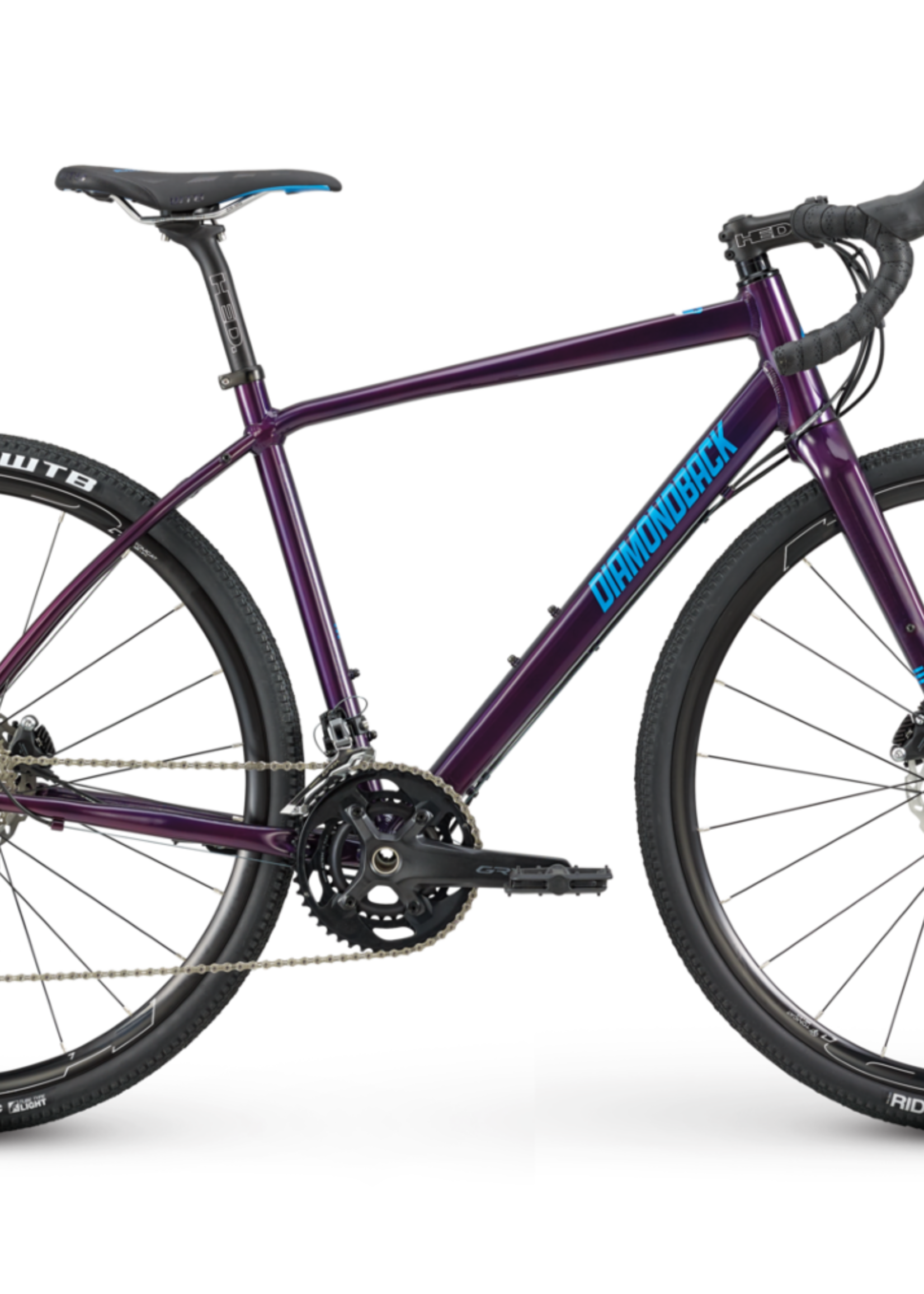

You’re lost. And that’s a good thing because the Diamondback Haanjo 5 is a gravel bike designed to help you get off the beaten track. That’s why we built it around our trustworthy 6061 alloy frame and carbon fork with thru axles front and rear. The path off road is rarely flat and smooth. Accordingly, we outfitted this beast with plenty of gears as well as HED Tomcat wheels shod with grippy WTB Riddler 700×37c tires. Finally, we’ve updated this ride to include Shimano GRX600 2×11 shifters, giving you more control when you need it. Looking for your next great adventure? When the road turns bad, this bike gets really good.
- FRAMEDB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc , 142x12mm Thru-axle w/Replaceable Hanger

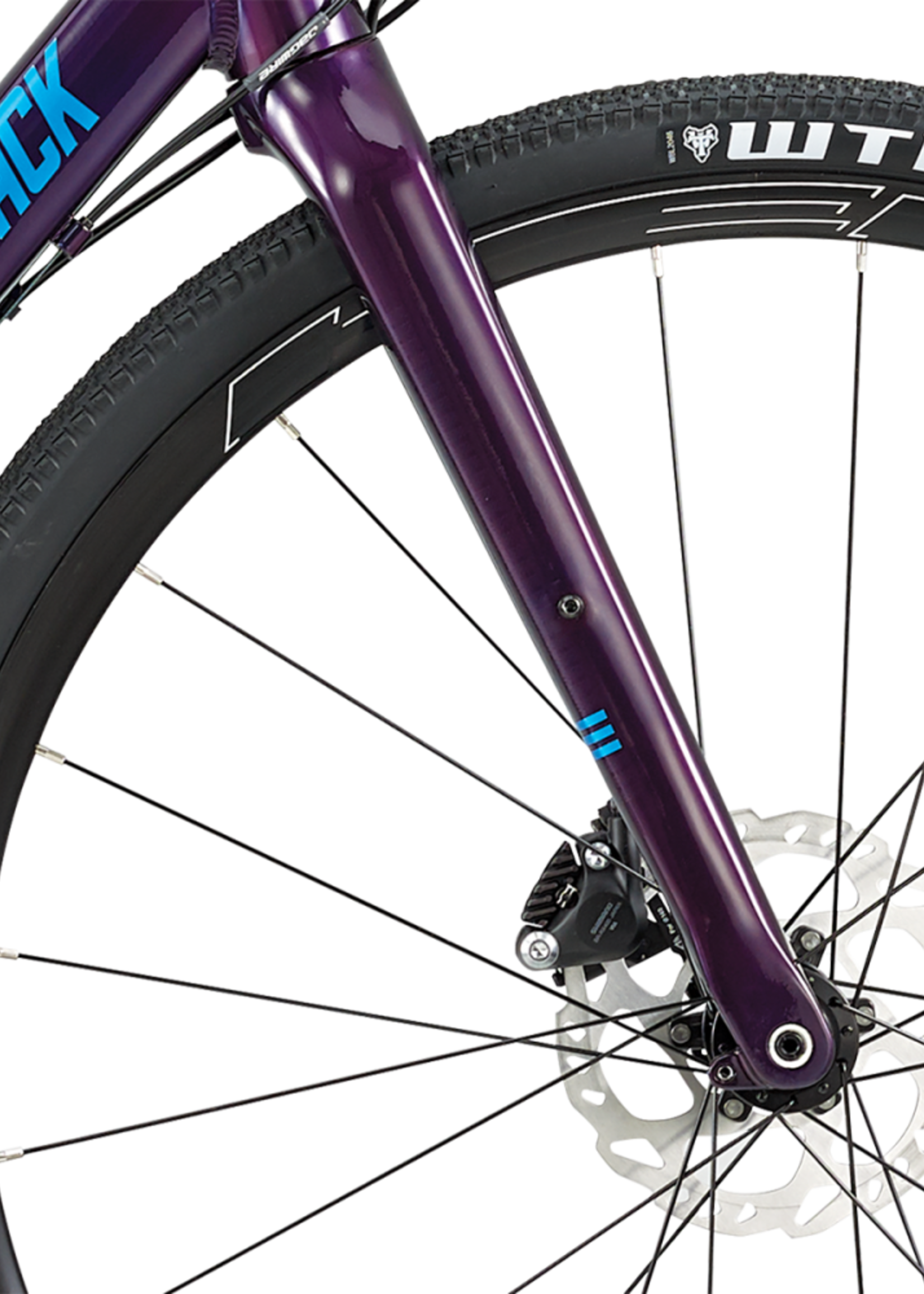

- FORKDB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
- HEADSETFSA No.42, Sealed Cartridge
- CRANKSShimano GRX600, 46/30T
- BOTTOM BRACKETShimano Outboard Bearing
- FRONT DERAILLEURShimano GRX810, 31.8mm Band Clamp

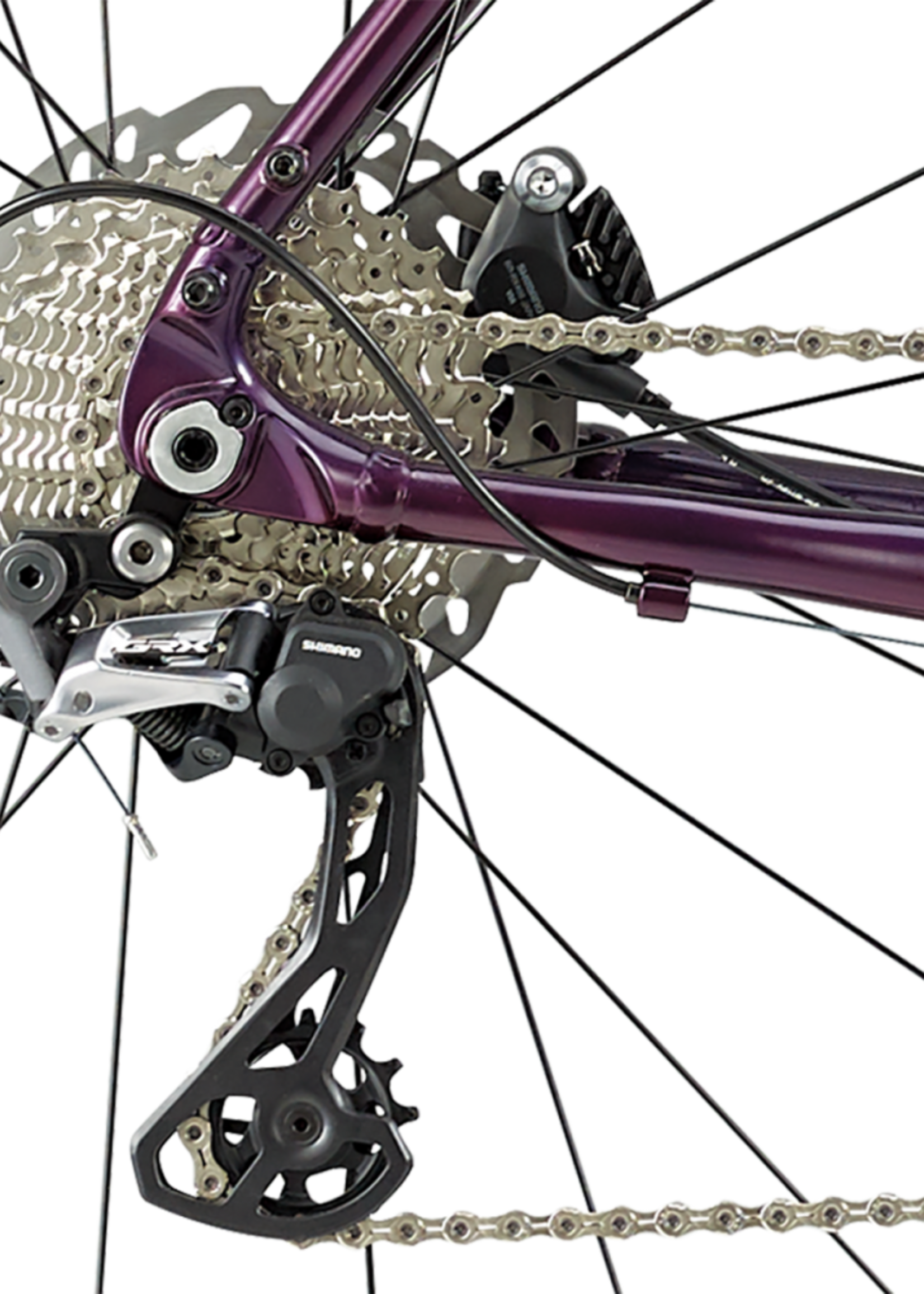

- REAR DERAILLEURShimano GRX810, Shadow Plus, 11 Speed
- SHIFTERShimano GRX600, Dual Control 2x11 Speed
- COGSETShimano HG70011 Cassette, 11 Speed, 11-34T
- CHAINKMC X11EL, 11 Speed
- FRONT HUB28h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
- REAR HUB28h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
- SPOKES2.0/1.8/2.0 Butted Stainless Steel
- RIMSHED Tomcat Disc, 28h, 21mm Internal Width, Taped for Tubeless
- TIRESWTB Riddler, Dual DNA Compound, 700x37c

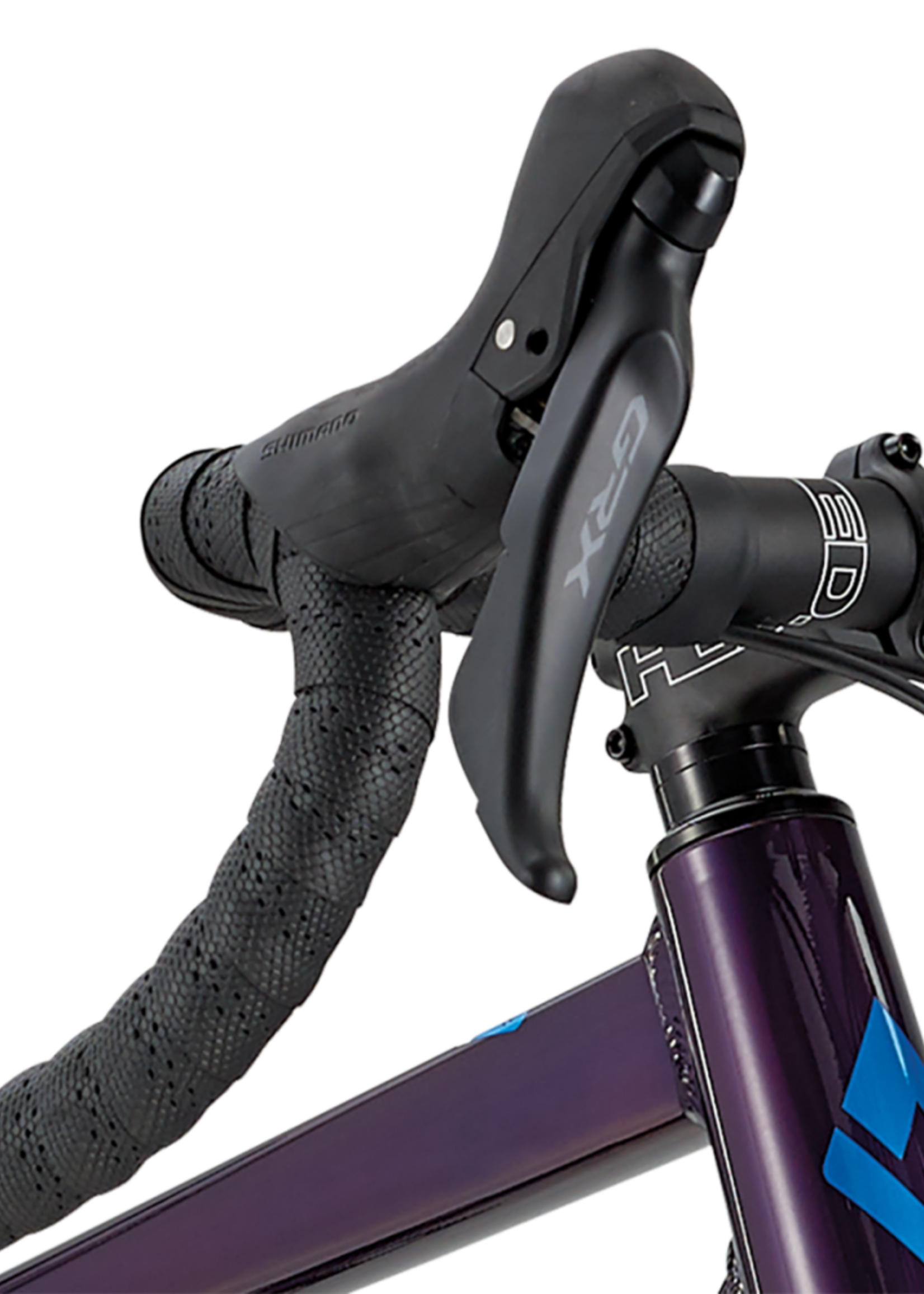

- BRAKE LEVERSShimano GRX600
- PEDALSDB Resin Gravel Platform
- HANDLEBARHED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
- GRIPSDiamondback Endurance Gel Tape
- STEMHED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore

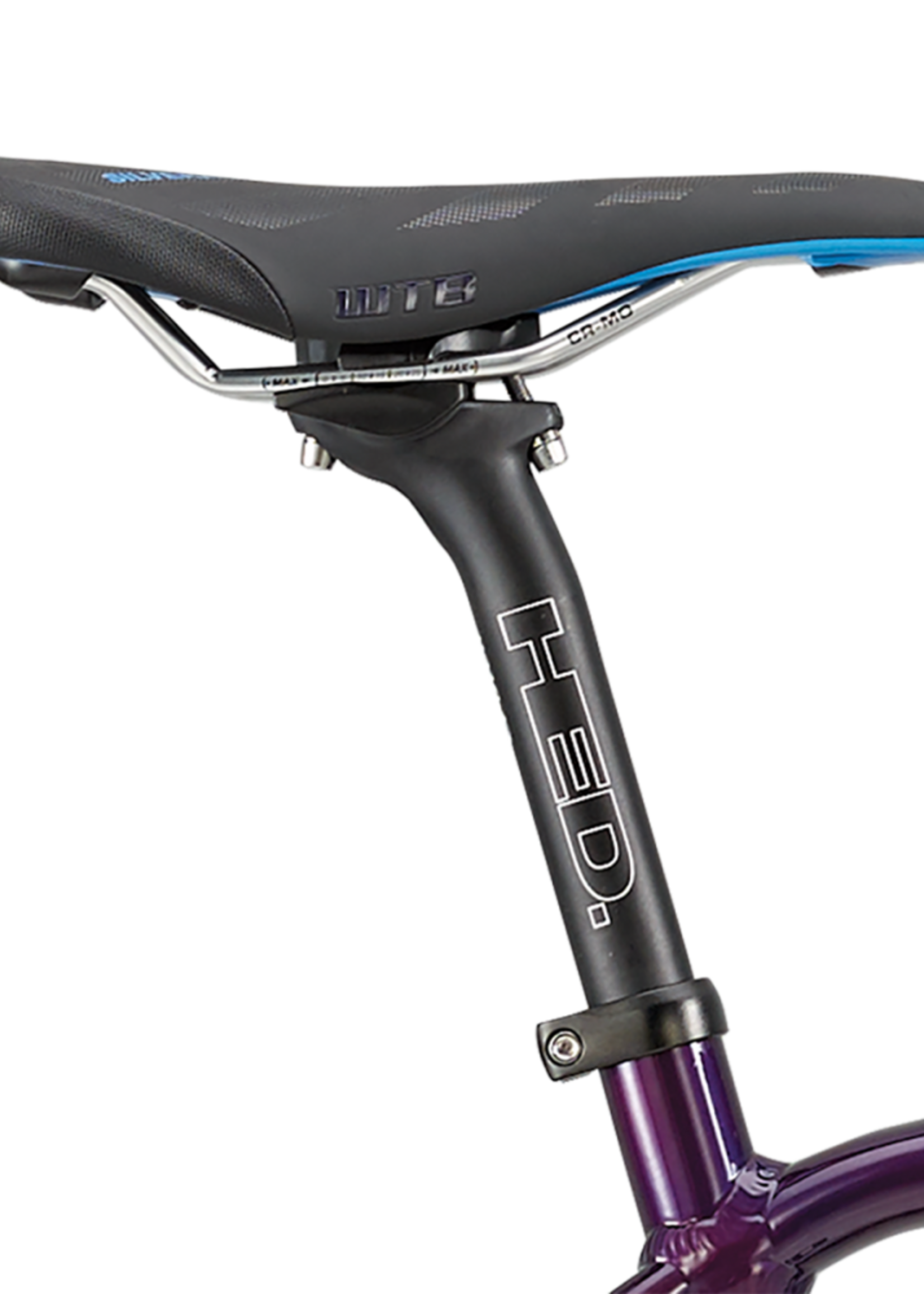

- SEATWTB Silverado Race
- SEATPOSTHED, 6061 Aluminum 27.2mm
- EXTRASTool Kit, Chainstay Protector, Tubeless Compatible - Requires Tubeless Tire, Sealant, and Valves to complete (not included).
- BRAKESShimano BR-RX400 Flat Mount Hydraulic Disc, w/160mm Front / 160mm Rear, RT70 Rotors
