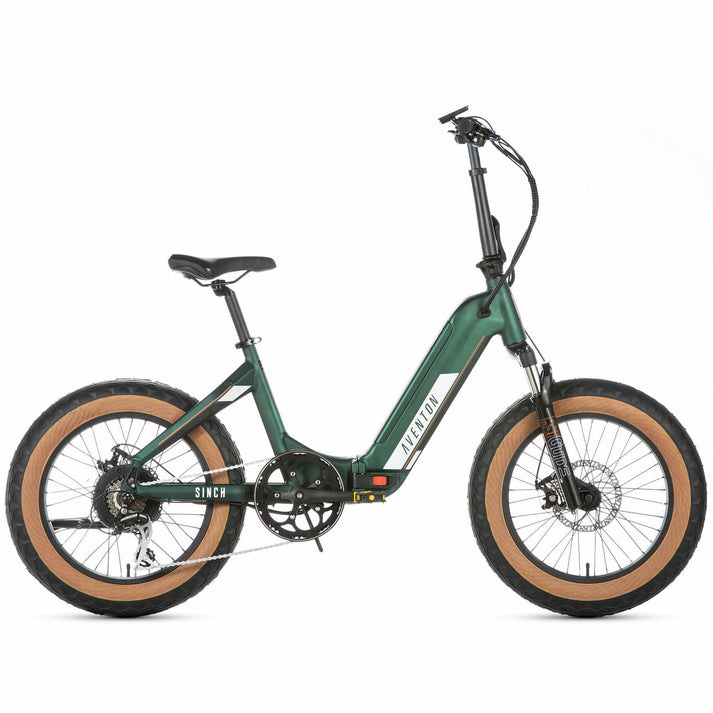

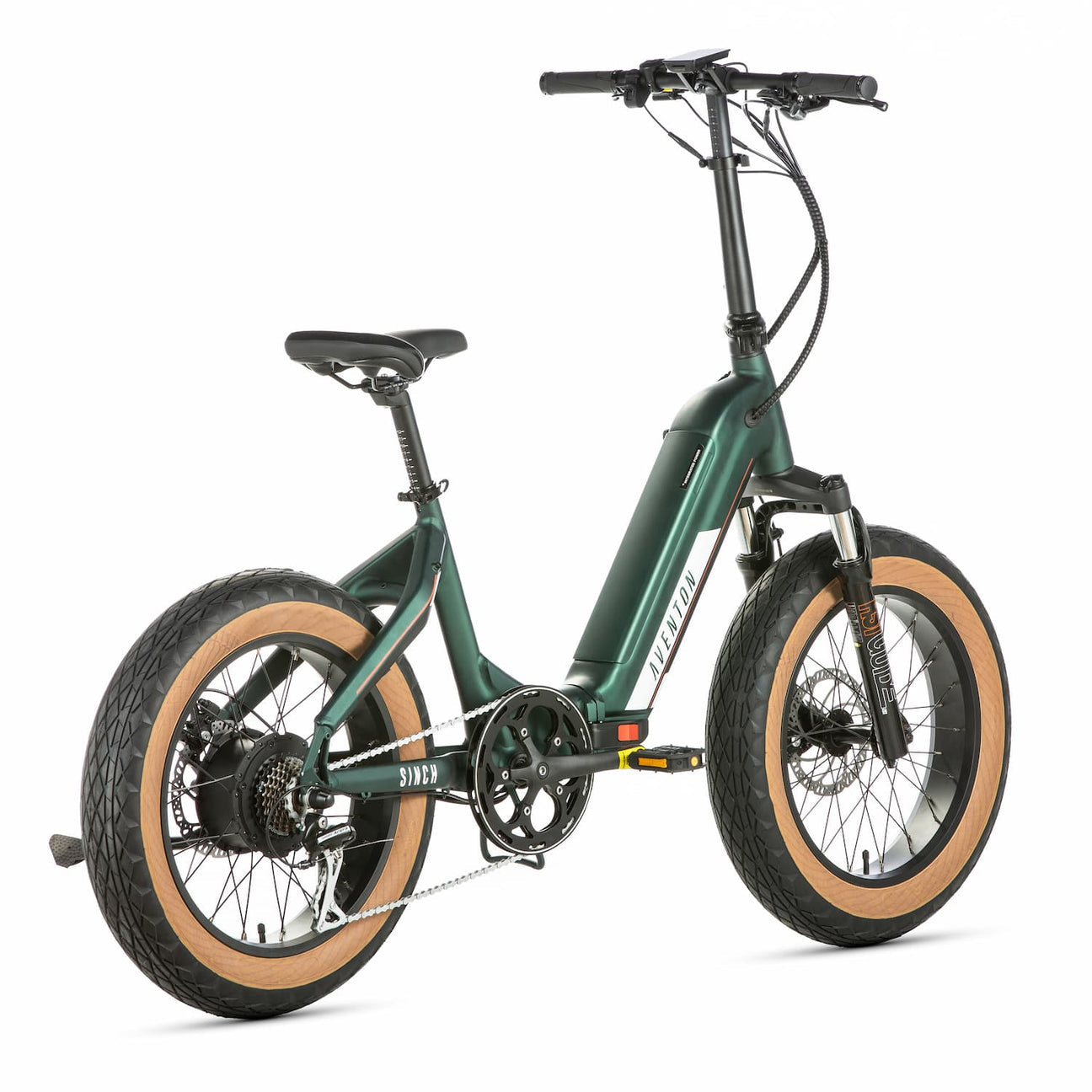

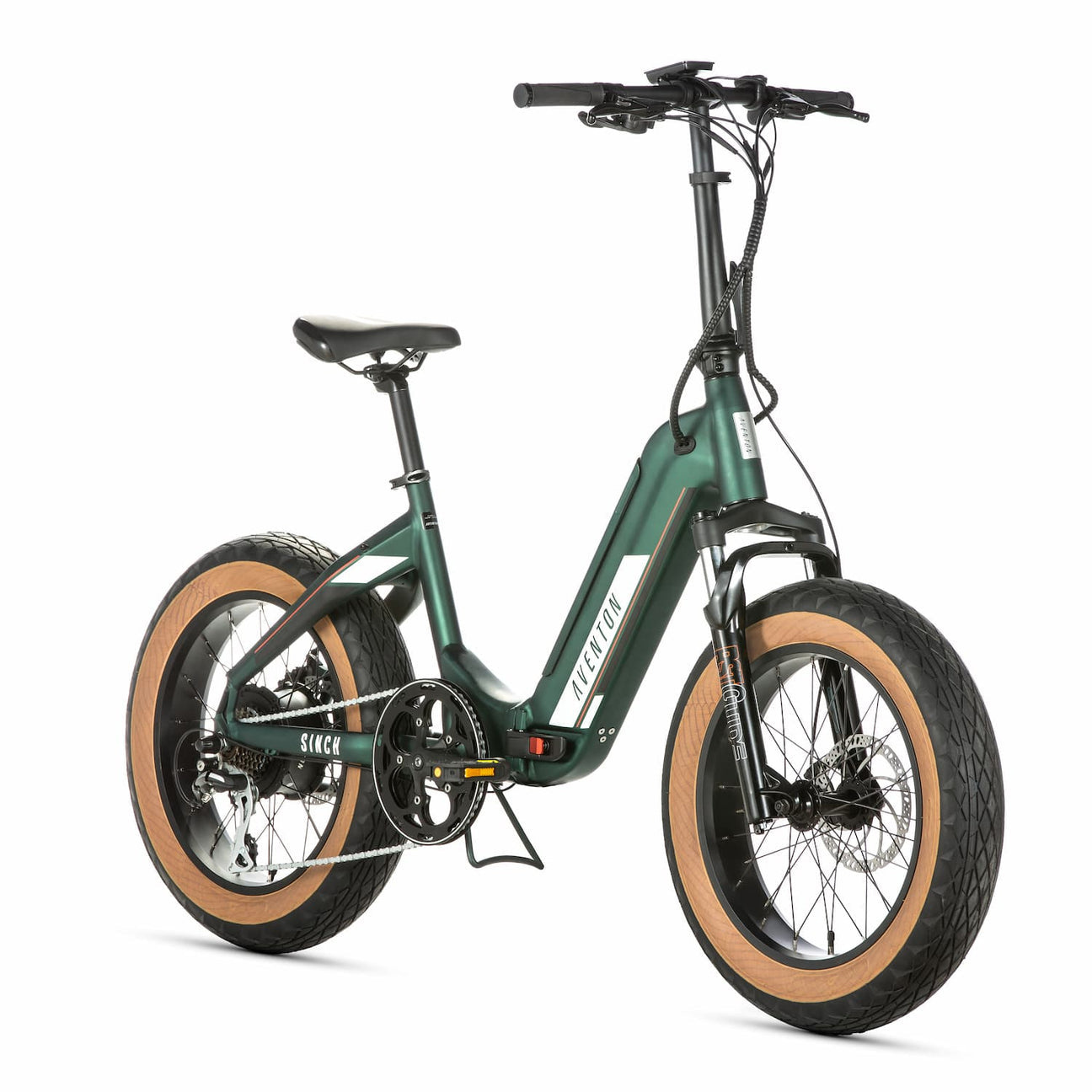

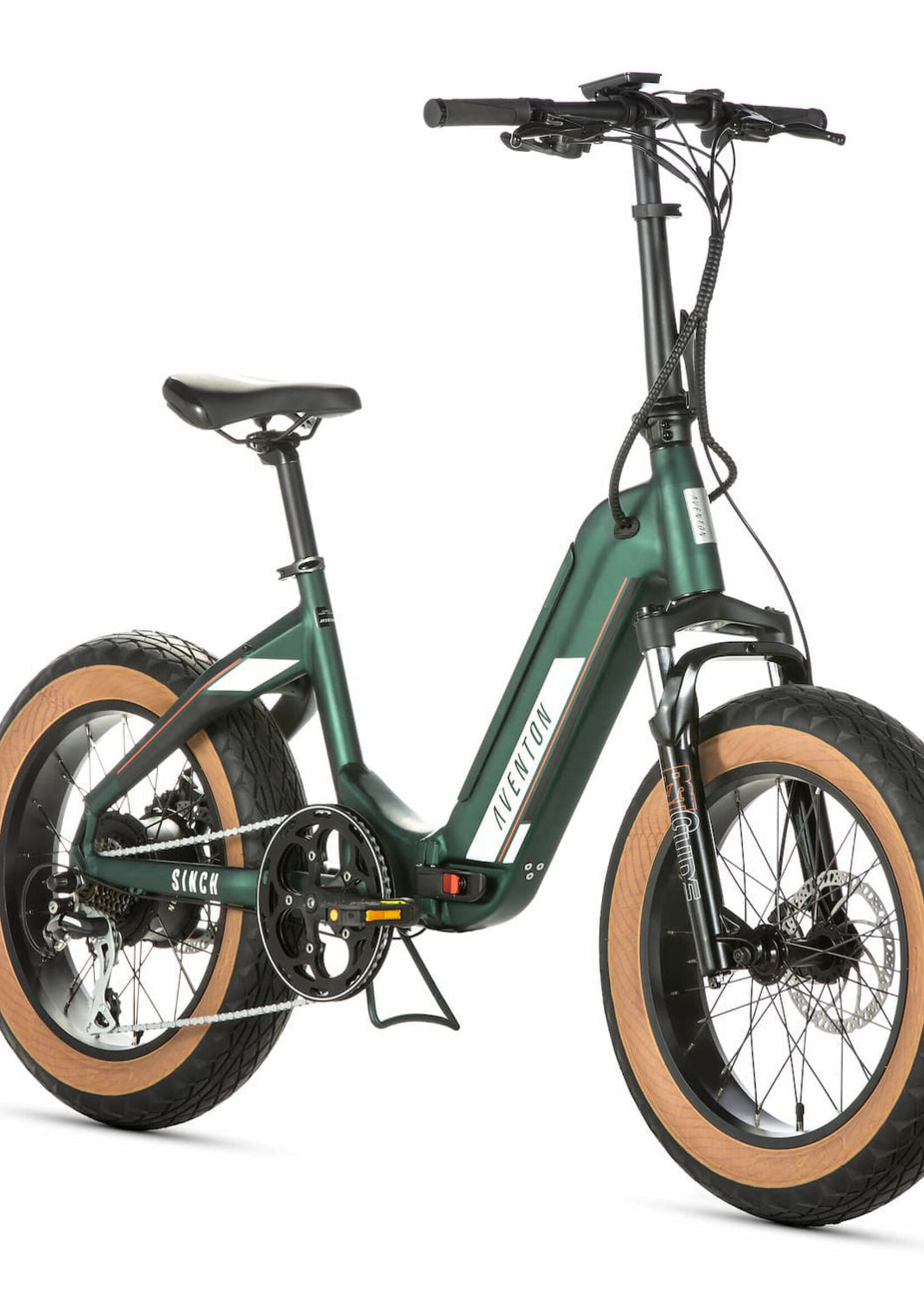

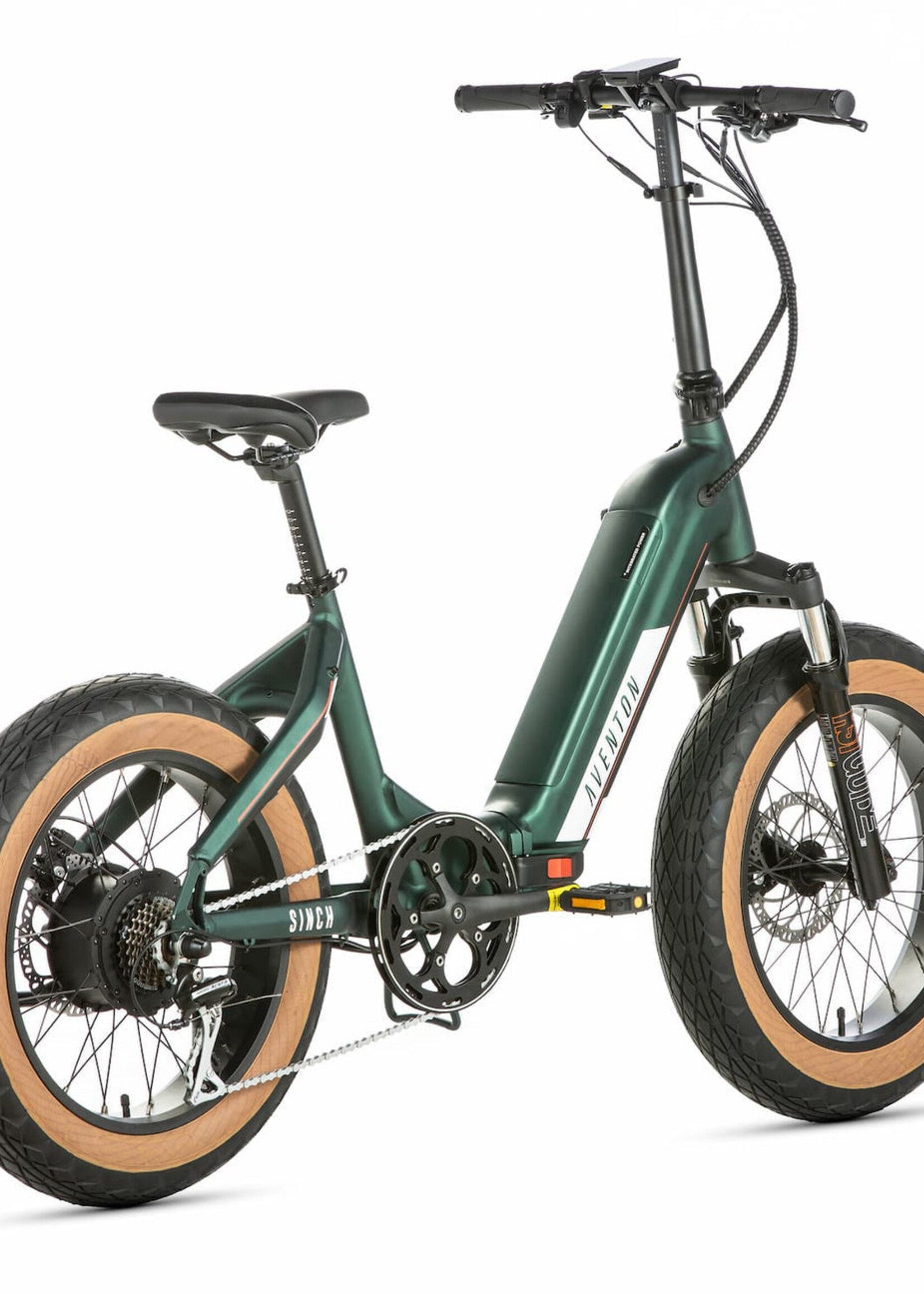

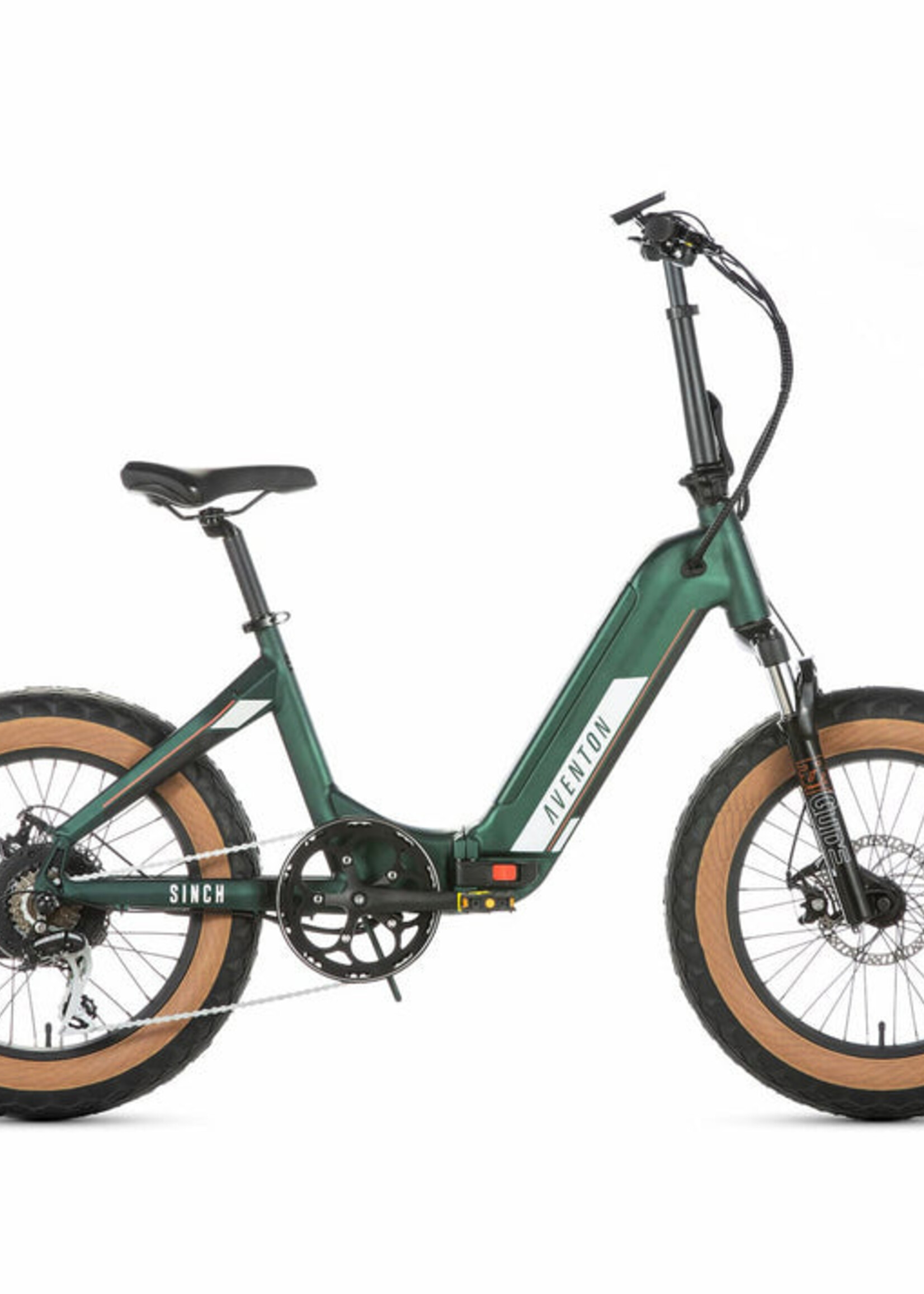

Foldable, portable, storable, powerful, comfortable, and always ready for the journey ahead. The Sinch Step-Through electric bike is the epitome of versatility meeting ruggedness. Store it in the trunk of a car or easily into a RV so you can take it anywhere with you as your very own two-wheeled companion. With 4" fat tires, a front suspension fork and a 500W motor, the Sinch ST can effortlessly take on both a relaxing cruise on pavement and a thrilling run on the trails!
Backlit Color Display with App Sync
Aventon's unique backlit, color display gives you vital information of your rides. Get speed, battery level, power output, distance traveled and more at a single glance. This display allows riders to link to the Aventon mobiule app and experience riding in new ways.

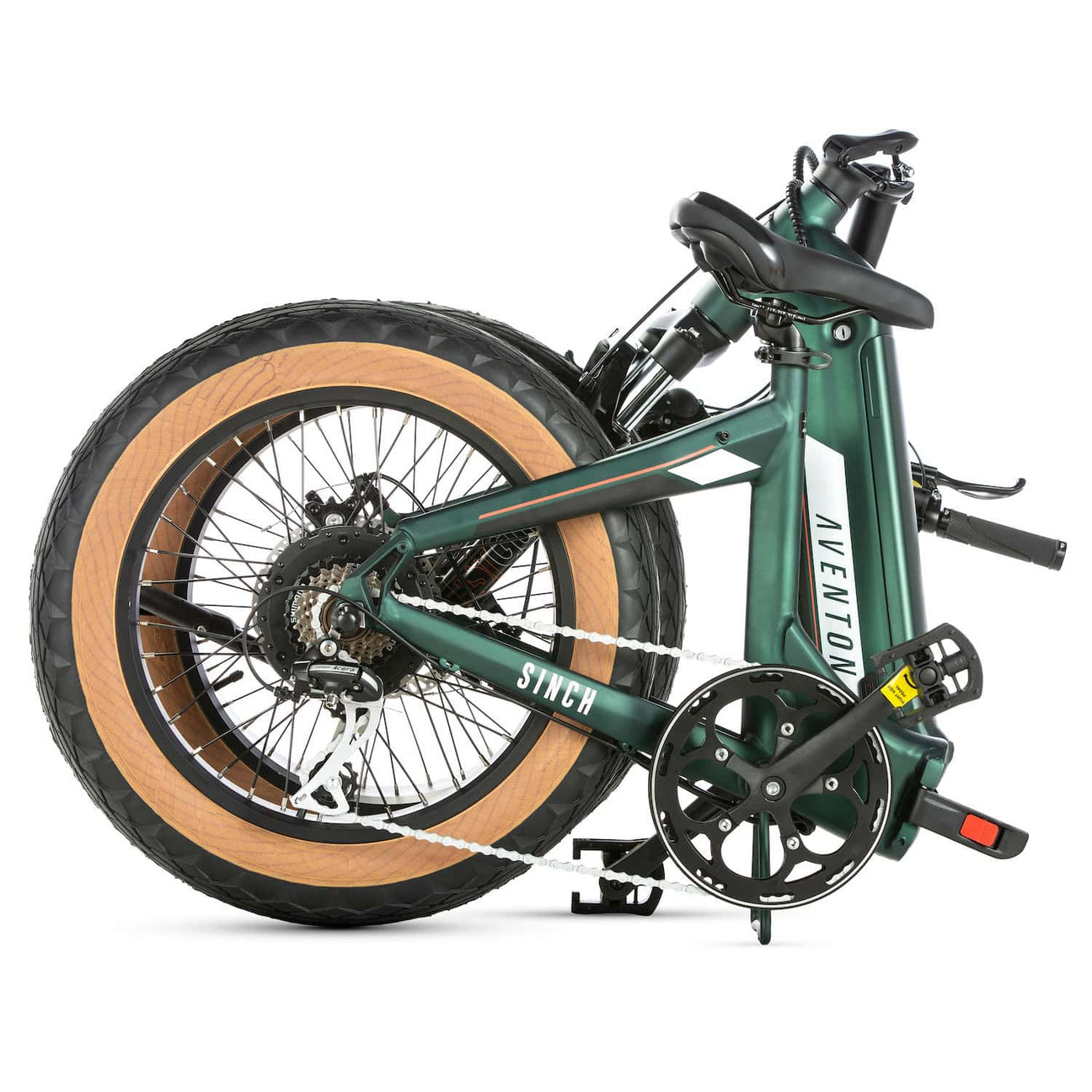

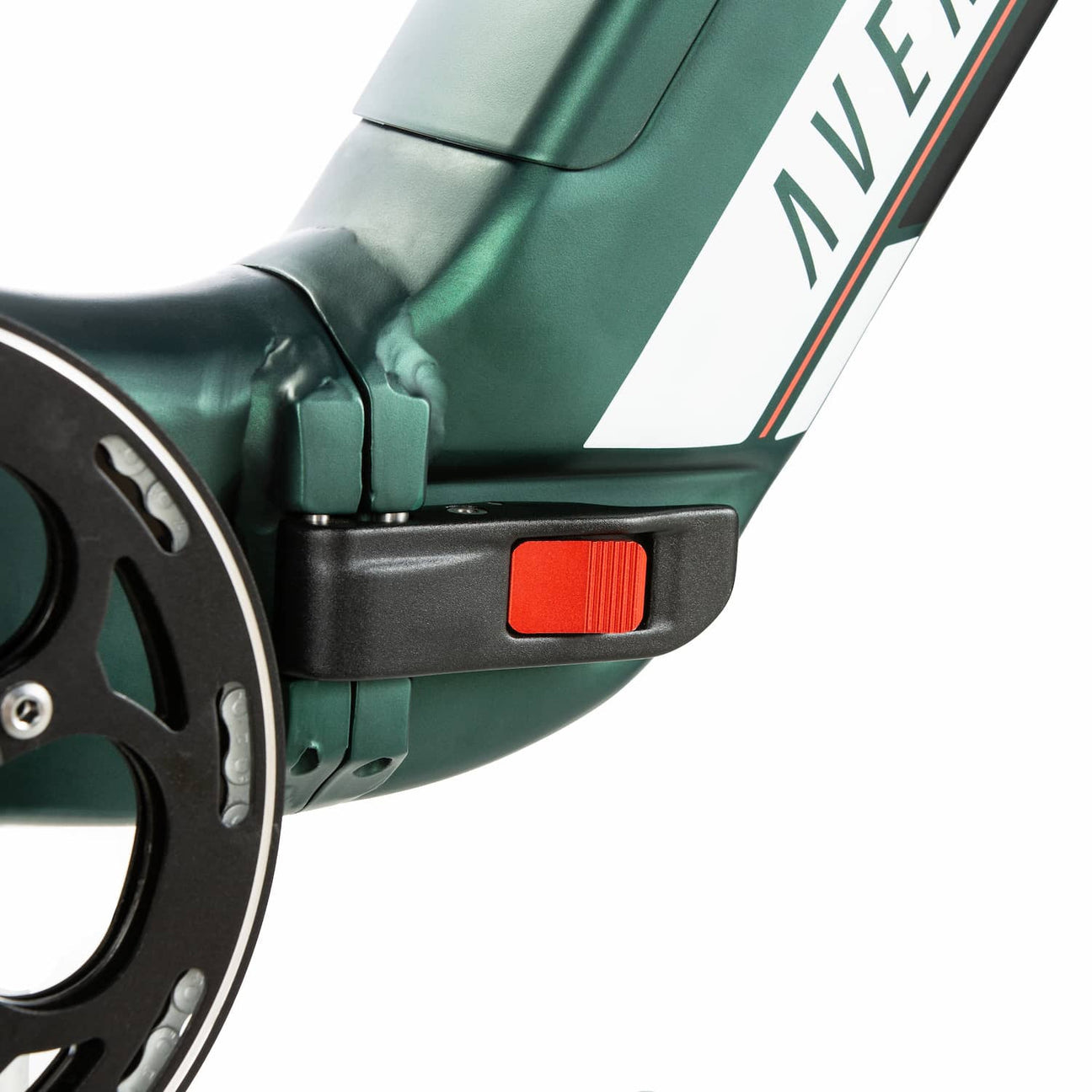

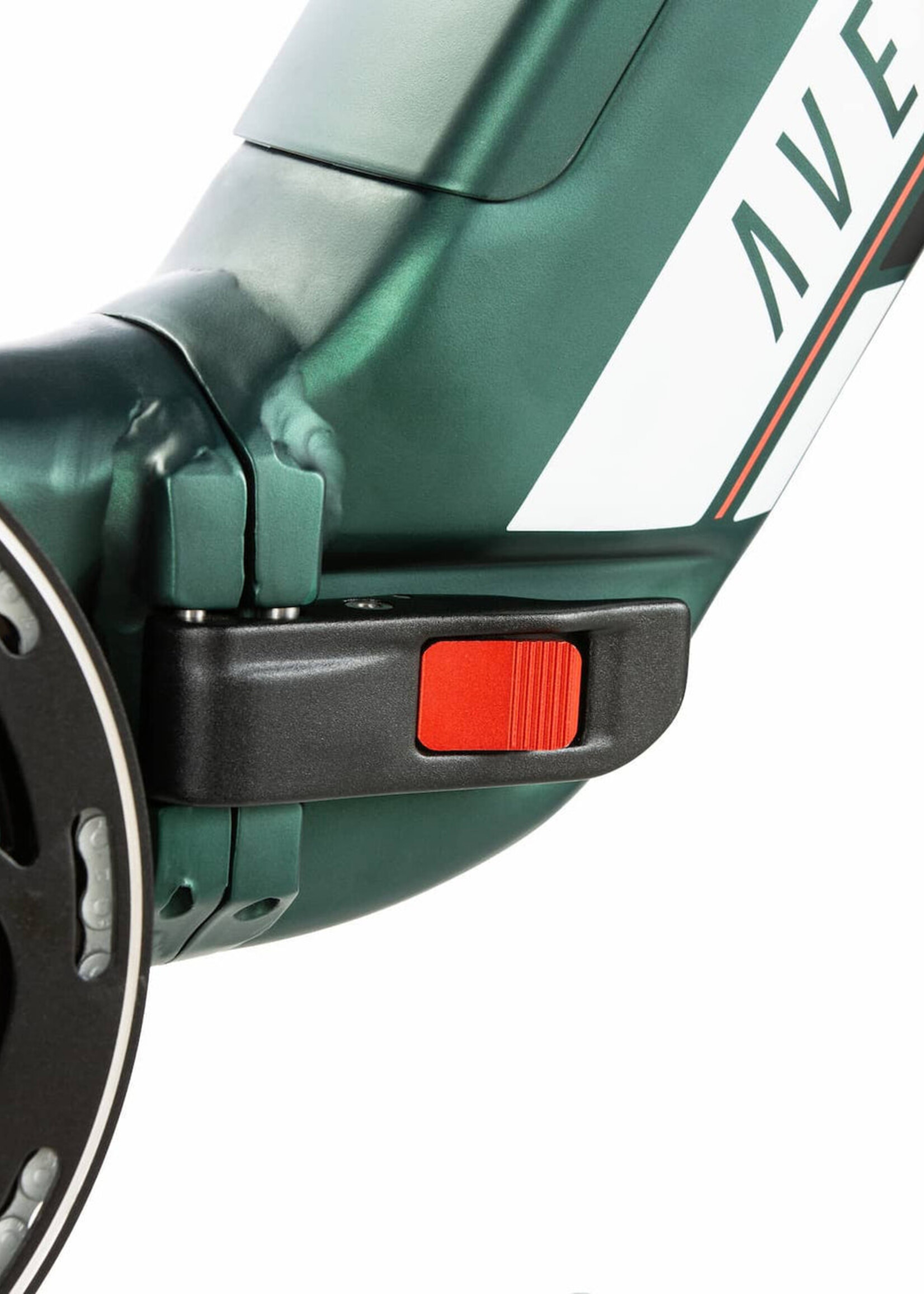

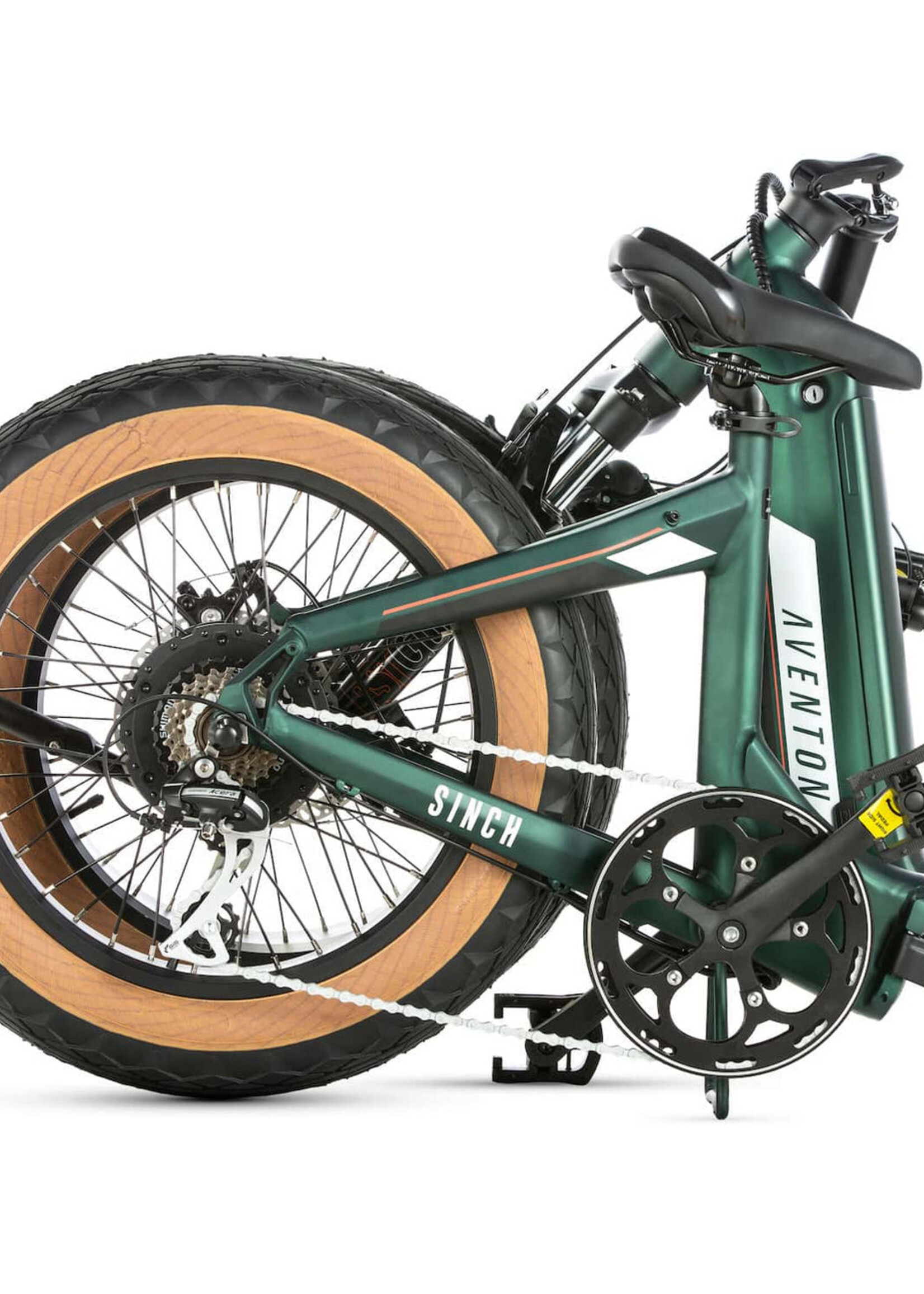

Foldable Frame
The Sinch ST folds and unfolds quickly and easily, and fits in closets, RVs, and under desks. Simply open the ebike, close the handlebars, close the clamp and you're all set to ride. Makes the perfect ebike for those who have to be space-conscious.
Front Suspension
The Sinch ST ebike is equipped with front suspension that has 45mm of travel, meaning that it can absord all the bumps of the road or terrain beneath you for one of the smoothest rides you'll ever experience on a folding ebike.
Fat Tires
Equipped with 4" fat tires to accompany the terrific front suspension provides riders with both comfort and connection to the pavement beneath their tires; helping them feel secure on any terrain.
Hub Motor & Battery
Features a 500W brushless rear hub motor and combined it with a 14Ah battery which means that you’ll have both the assistance to get there and the juice to get yourself home once your journey is over.
Pedal Assist & Throttle
Having both pedal assist and throttle functions allows you to choose how much your SINCH ST helps you to get around. Select one of five levels of pedal assist at a speed that’s right for you. Or choose not to pedal at all with the thumb throttle located at your fingertips.
Geometry
| Frame Size | Measurements |
|---|---|
| Height | 4'11" - 6'3" |
| Top Tube Length | 668mm |
| Reach | 483mm |
| Head Tube Length | 165mm |
| Standover Height | 390mm |
| Wheelbase | 1130mm |
| Min Saddle Height | 850mm |
| Max Saddle Height | 1018mm |
Specifications
| MOTOR 48v, 500w Brushless hub motor | THROTTLE Thumb Throttle on Handlebars | DISPLAY BC280 LCD Smart Easy Read Display with Backlight, Colorful screen with app |
| SPEED Up to 20 MPH on Pedal Assist | BATTERY Removable Internal Lithium-ion 48V,14Ah(672Wh)with LG Cells | SENSORS Cadence Sensor, Speed Sensor |
| PEDAL ASSIST 5 Levels | CHARGER 48V 3 Amp Fast Charger, 4-5 Hour Charging | RANGE 40 Miles Average |
| FRAME 6061 Single-Butted Aluminum Alloy with Internal Battery | WEIGHT 68lbs | PEDALS 9/16' Plastic Folding Platform |
| DIMENSIONS Unfolded: 67" L / 23.25" W / 48" H Folded: 46" L / 28" W / 30" H | WEIGHT LIMIT Maximum Payload Capacity: 300 lbs | FORK RST GUIDE-ML-20 45mm travel, with lockout |
| BOTTOM BRACKET Square Taper, Sealed | CRANKSET 170mm, 52T | REAR DERAILLEUR 7 Speed |
| FREEWHEEL 7 Speed | SHIFT LEVER 7 Speed | BRAKES Mechanical Disc Brakes, 180mm rotors |
| CHAIN 7 Speed | RIM Double Wall Aluminum 36h Front & Rear | SPOKES Front: Black Stainless 13 Gauge Rear: Black stainless 12 Gauge |
| TUBES Butyl Rubber, Schrader Valve 20x4.0 | HUBS 36H Disc Nutted Front and Rear | TIRES 20" x 4" Ebike Rated, Gum Sidewalls |
| SADDLE Aventon Velo Comfort, Steel Rails, 245mm wide | SEATPOST Forged Alloy, 30.4mm, 1-Bolt Clamp | STEM Folding,Height Adjustable 28.6mm, 9 Degree Rise |
| SEAT CLAMP Quick Release | HANDLEBARS Aluminum 25.4mm diameter, 580mm wide | HEADSET VP Sealed Bearing Headset |
| GRIPS Standard Round w/ Grip Locks |
Sinch ships as a Class II ebike, with pedal assist and throttle going up to 20 MPH. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and Sinch's powerful motor can go up to about 4 MPH above the factory set top speed on pedal assist only. Sinch can also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed.
Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
